OTDR Optical Fiber Tester Mini (BLUE)

Key Features

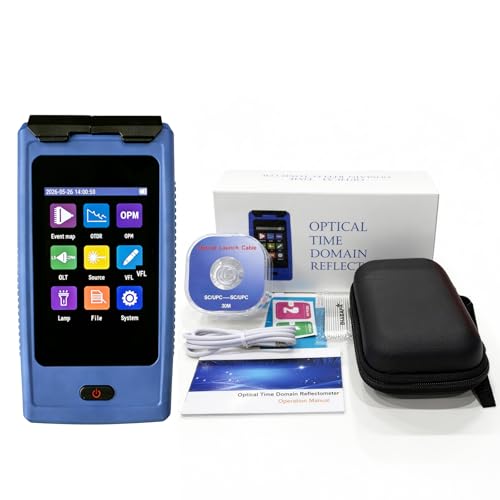

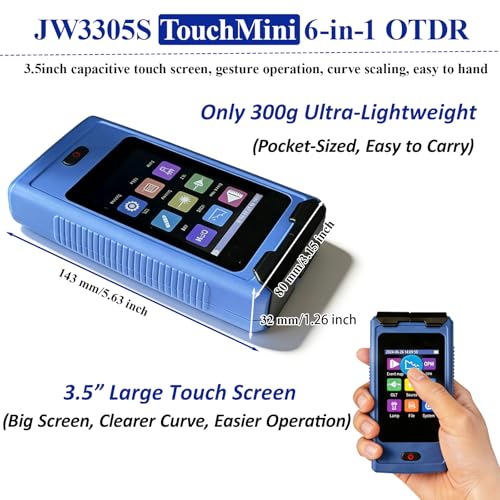

• All-in-One Touch Screen OTDR Fiber Tester:This mini-pro optical fiber tester features an intuitive touch screen for easy operation, integrating OTDR, event map, optical power meter, light source, VFL, cable tracker, and RJ45 sequencer. Ideal for FTTx and access network construction and maintenance, it accurately locates fiber breakpoints, measures cable length, and calculates optical power loss.

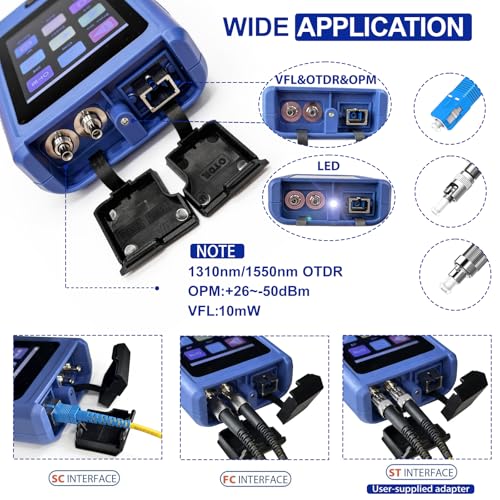

• Professional Testing Performance:Supports 1310/1550nm single-mode testing with a range of 10m–60km and dynamic range of 24dB/22dB. Equipped with FC/UPC connectors compatible with SC/ST adapters. Note: this unit does not test splitters, which require a dynamic range above 42dB for accurate measurement.Comes with a 30-meter fiber optic extension cable.
• Ample Storage & Professional Analysis:Built-in 600MB memory plus a MicroSD/TF card slot for extended data storage. Includes dedicated PC analysis software for in-depth data processing and test report printing, making it convenient for on-site work and post-analysis.
• Wide Application & High Efficiency:Widely used in fiber optic communications, sensing, cabling, and manufacturing. The responsive touch screen and multifunctional design help engineers quickly troubleshoot faults, improve maintenance efficiency, and serve as an essential tool for optical communication engineering.

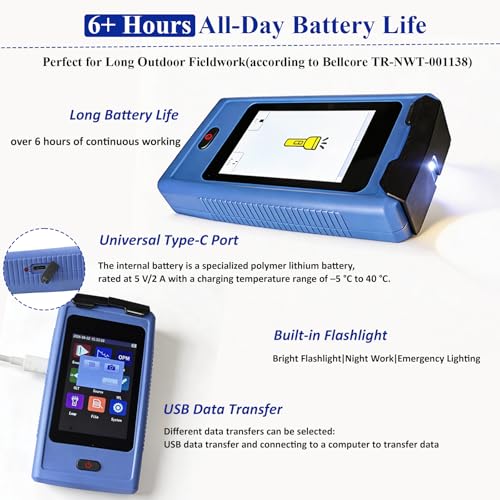

• Reliable Battery & Safety Instructions:Powered by a premium lithium-polymer battery charged at 5V with temperature protection (0℃–50℃). Monthly charging is recommended to maintain battery health. Eye protection is required when operating; avoid direct eye exposure to optical ports. Non-online testing wavelengths may damage the instrument if misused.

Specifications
