ENERGY EFFICIENT MAGNETIC DRIVE PUMP: 0.75 running Amps, 57 Watts, UL listed in the USA and Canada
APPLICATIONS: designed for water fountains and ponds up to 725 gallons, hydroponics and other water transfer applications
FLOW CONTROL VALVE: built-in, adjustable flow control valve helps set the perfect flow level for fountains or hydroponic applications
BUILT TO LAST: features such as continuous-duty motor; corrosion-resistant ABS pump housing; ceramic shaft, and built-in screen to help protect the impeller increased the life cycle of the pump
SPECIFICATIONS: 120 Volts; 0.75 Amps; 57 Watts; 15-Foot Cord; 3/4-inch barbed discharge; 725 GPH at 1-ft lift; 9.51 shut-off; maximum fountain height 6.32-ft. or less
Specifications
Brand
Little Giant
Manufacturer
Franklin Electric Co., Inc.
Model
566720
Material
Acrylonitrile Butadiene Styrene
Color
Black
Size
725 GPH
Style
15-ft. cord
Product Type
WATER_PUMP
Included Components
Pump with 15-ft. cord, Installation manual
Item Type Keyword
pond-water-pumps
Item Dimensions
H: 181 / L: 121 / W: 216 (Weight: 1429)
Package Dimensions
H: 121 / L: 213 / W: 177 (Weight: 1610)
unit
Description

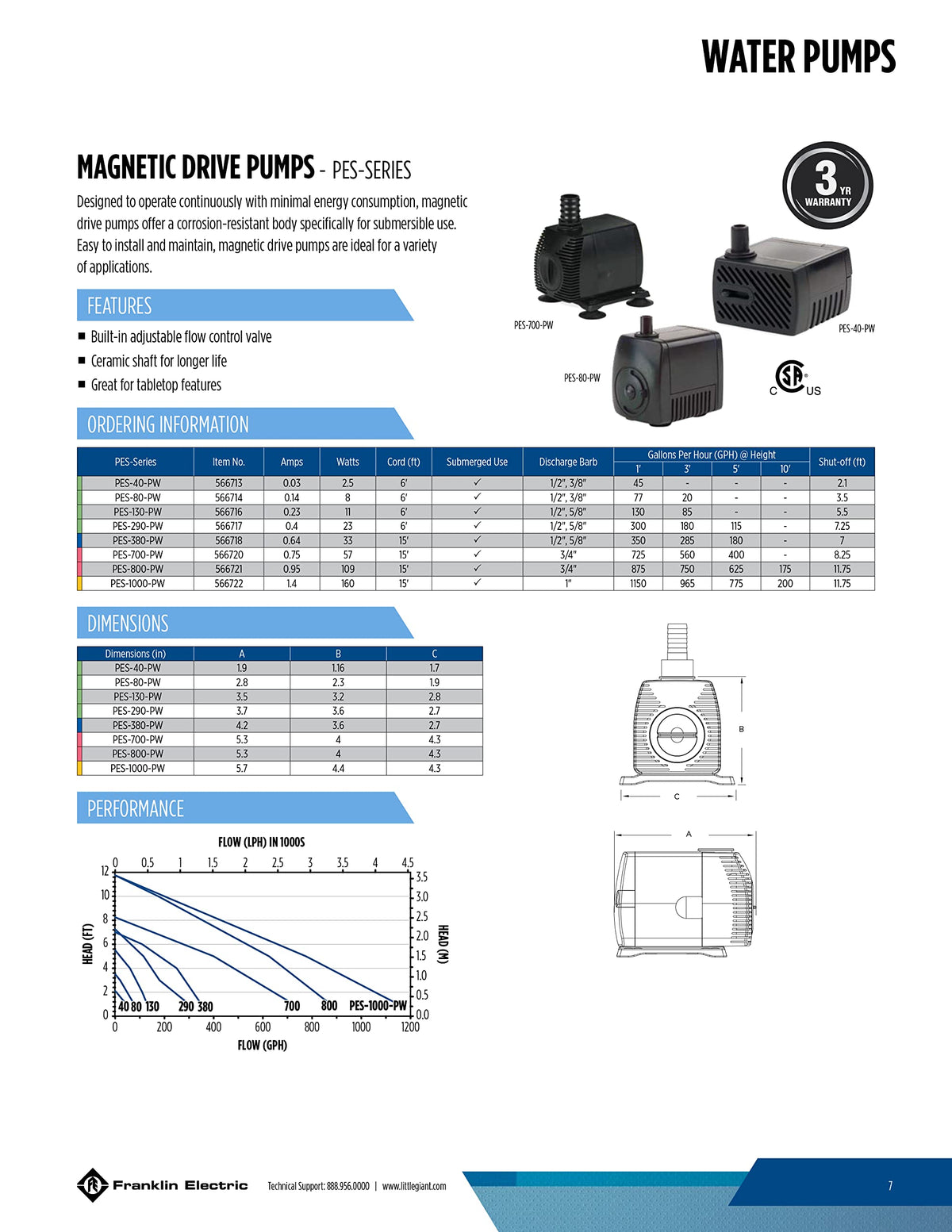

Magnetic drive pumps are designed to operate continuously with minimal energy consumption. The PES Series pumps offer a corrosion-resistant body designed for submersible use only. They are easy to install and maintain. All PES Series pumps have a built-in adjustable flow control valve which can easily lower the flow of the pump to customize the look of your fountain.
The Little Giant PES-700-PW uses just 0.75 Amps/57 Watts of power. It has a 3/4" barbed discharge and can circulate up to 725 GPH at 1-ft. lift. It has a shut-off height of 9.51-ft. and can pump up to 6.32-ft. high with an acceptable flow rate. This pump is ideal for large statuary fountains or ponds up to 1150 gallons. A typical pond that this could be used for would be 5' long x 5.3' wide x 18" deep.
